Even for sites that require TOTP authentication, you can crawl and scan them by configuring the scan settings in advance and using the Manual Crawl feature.
|
MEMO
|
The following steps are required to crawl and scan sites that require Multi-Factor Authentication (TOTP).
Table of Contents
Registering the Secret Key
Open the "Create New Scan" (or "Edit Scan") screen, and register the key in the

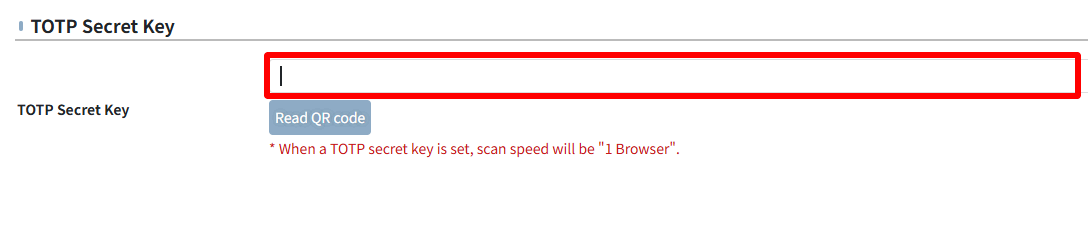

Credentials > TOTP Secret Key field. There are two ways to register the key:
-
Entering as a Text String Directly enter the secret key (text string) displayed on the target site's MFA setup screen or in an authenticator app (such as Google Authenticator).
-

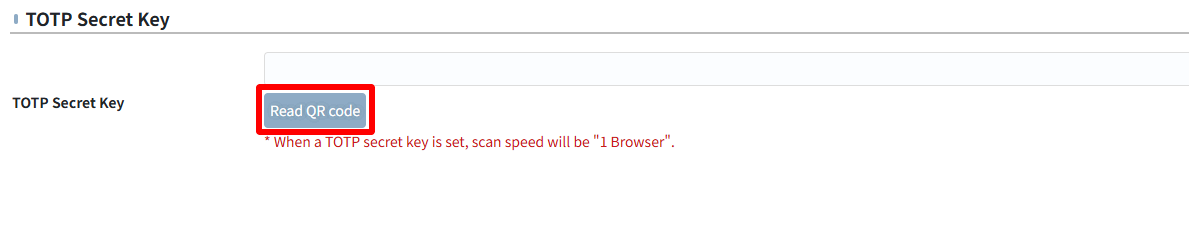

Reading a QR Code Image Click "Read QR Code" and select the QR code image file saved on your local PC. Please verify that the secret key is automatically populated.
|
MEMO 【Requirements for Uploadable QR Codes】
|
Once the registration is complete, save the scan settings.
Executing Login in the Remote Browser
-

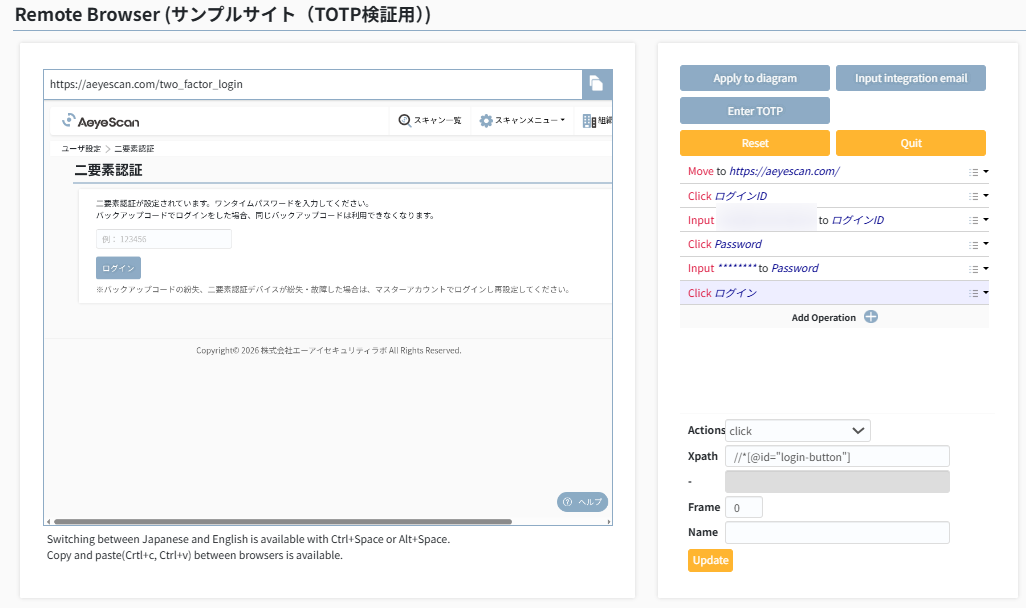

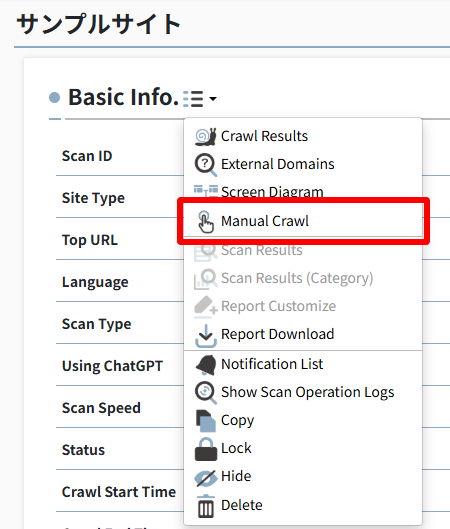

Open the basic scan information and launch the Remote Browser screen (Manual Crawl).
(※ For basic operations regarding Manual Crawl, please refer to the FAQ article below) https://www.aeyescan.help/hc/ja/articles/37802917309721
-
In the remote browser, proceed with the operations until you reach the login screen or the screen requiring authentication.
-

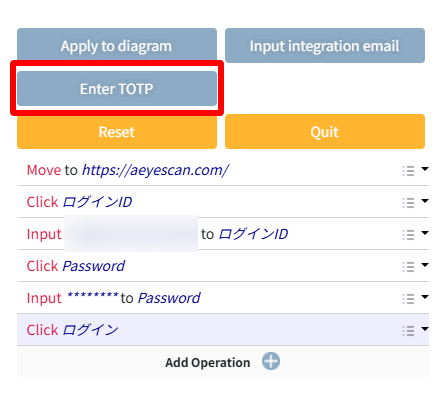

Place your cursor (focus) on the one-time password input form, and click the "Enter TOTP" button located in the upper right corner of the screen.
-

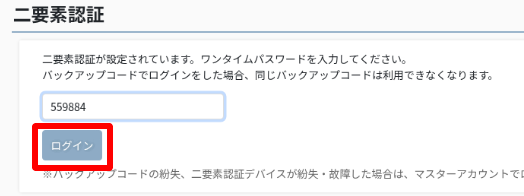

Verify that the one-time password has been automatically populated, and then execute the login.
-

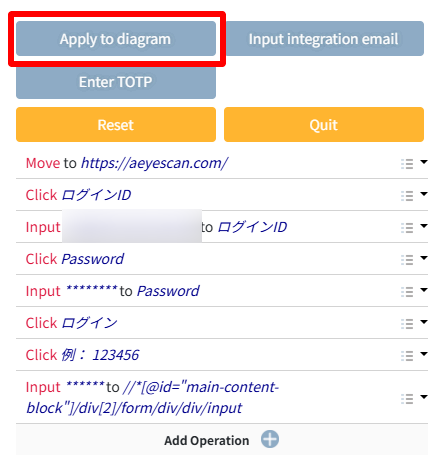

Proceed with the page transitions after a successful login as usual to reflect them in the screen transition diagram.
