Manual Crawl (Remote Browser) allows you to crawl the screen manually.
It is possible to manually crawl and diagnose areas that are difficult to crawl with the automatic crawl.
The screen transitions recorded by the manual crawl can be reflected in the screen transition diagram of the automatic crawl.
It is also possible to execute the automatic crawl from the middle of the screen transition diagram of the manual crawl.
The following is a description of the manual crawl process using a remote browser.
■Basic Operation
This section describes how to crawl manually using the remote browser.
When using the remote browser function, please create a new scan of the site you wish to crawl manually.
For details on how to register scans, please refer to "Step5 Register and run the scan".
【Procedure 】

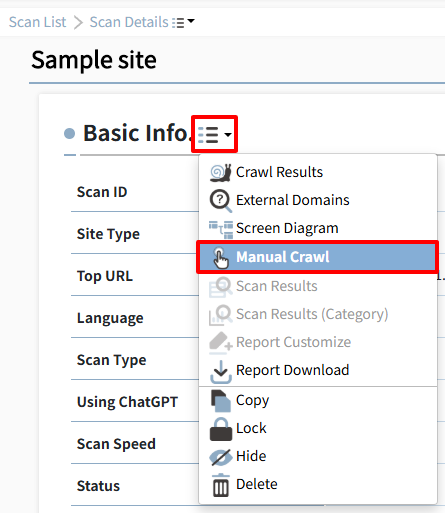

1. Go to the Scan Details page and click "Manual Crawl" from the scan menu.

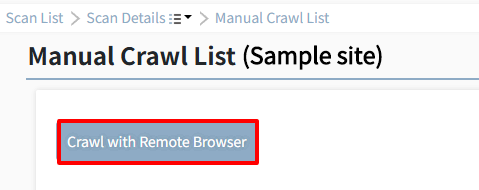

2. Click on "Crawl with Remote Browser".

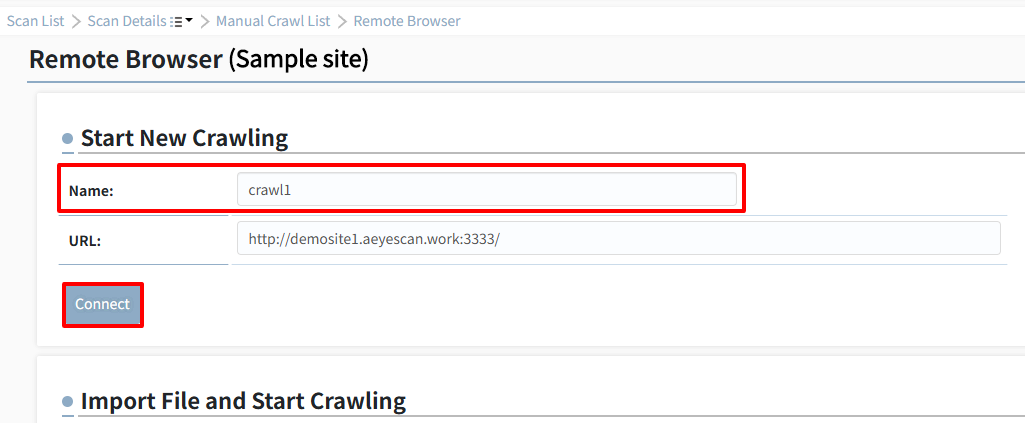

3. Enter any value in the "Start New Crawling" name field and click the "Connect" button.
4. The remote browser will launch and display the target site.
*If a custom header is specified in the scan settings, the setting will be applied.

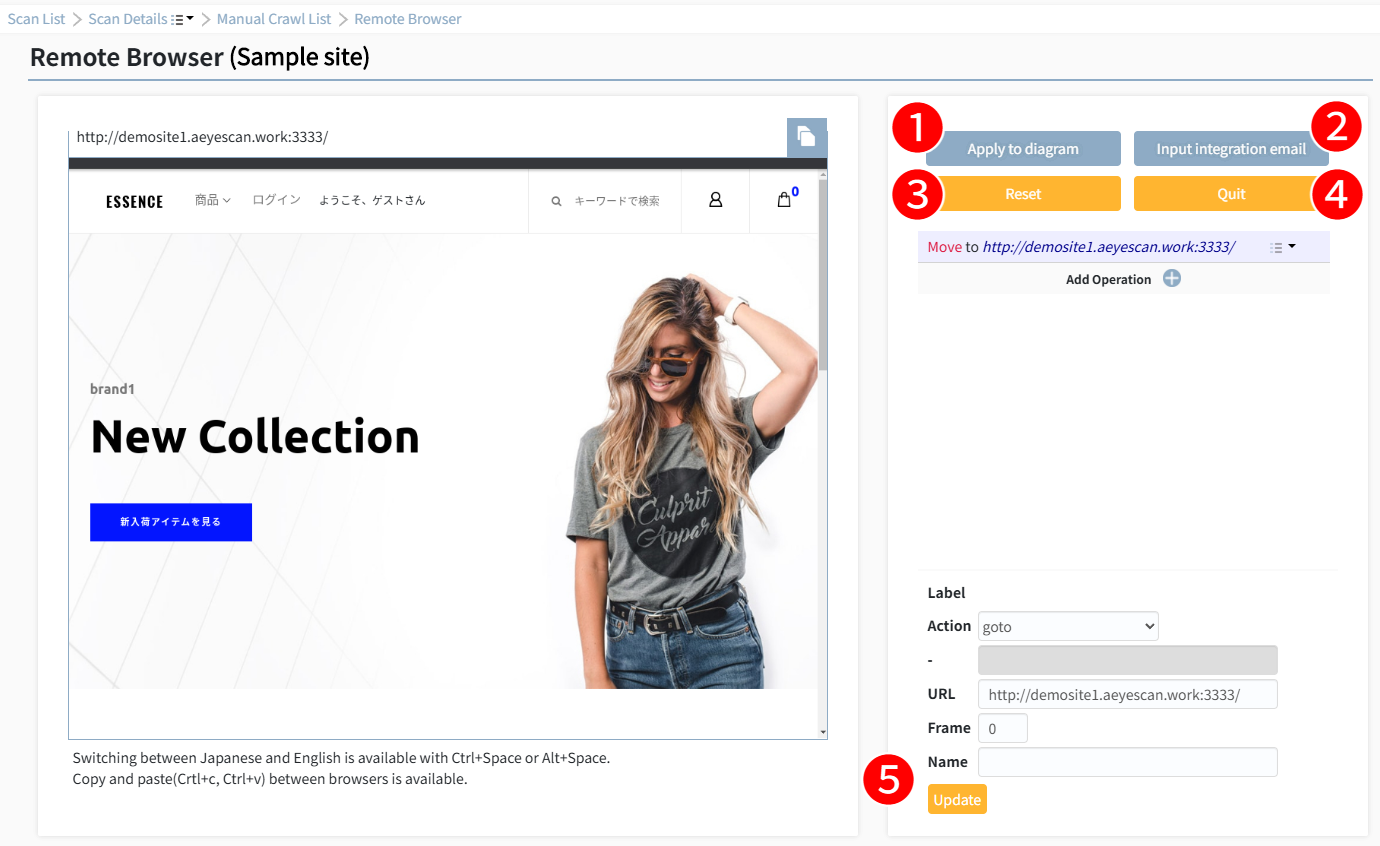

① "Apply to diagram"
Reflects the operations acquired on the remote browser to the screen transition diagram.
② "Input integration email"
When entering an e-mail address into a form, etc., the e-mail address entered is optional, but using an e-mail address for e-mail integration issued by the e-mail integration function will enable diagnosis of the new registration function and the password reissue function.
For details on the e-mail integration function, please click here.
③ "Reset"
Resets the operation history retrieved on the remote browser.
④ "Quit"
Suspends the remote browser function.
⑤ "Rename Operation"
Change the operation name.

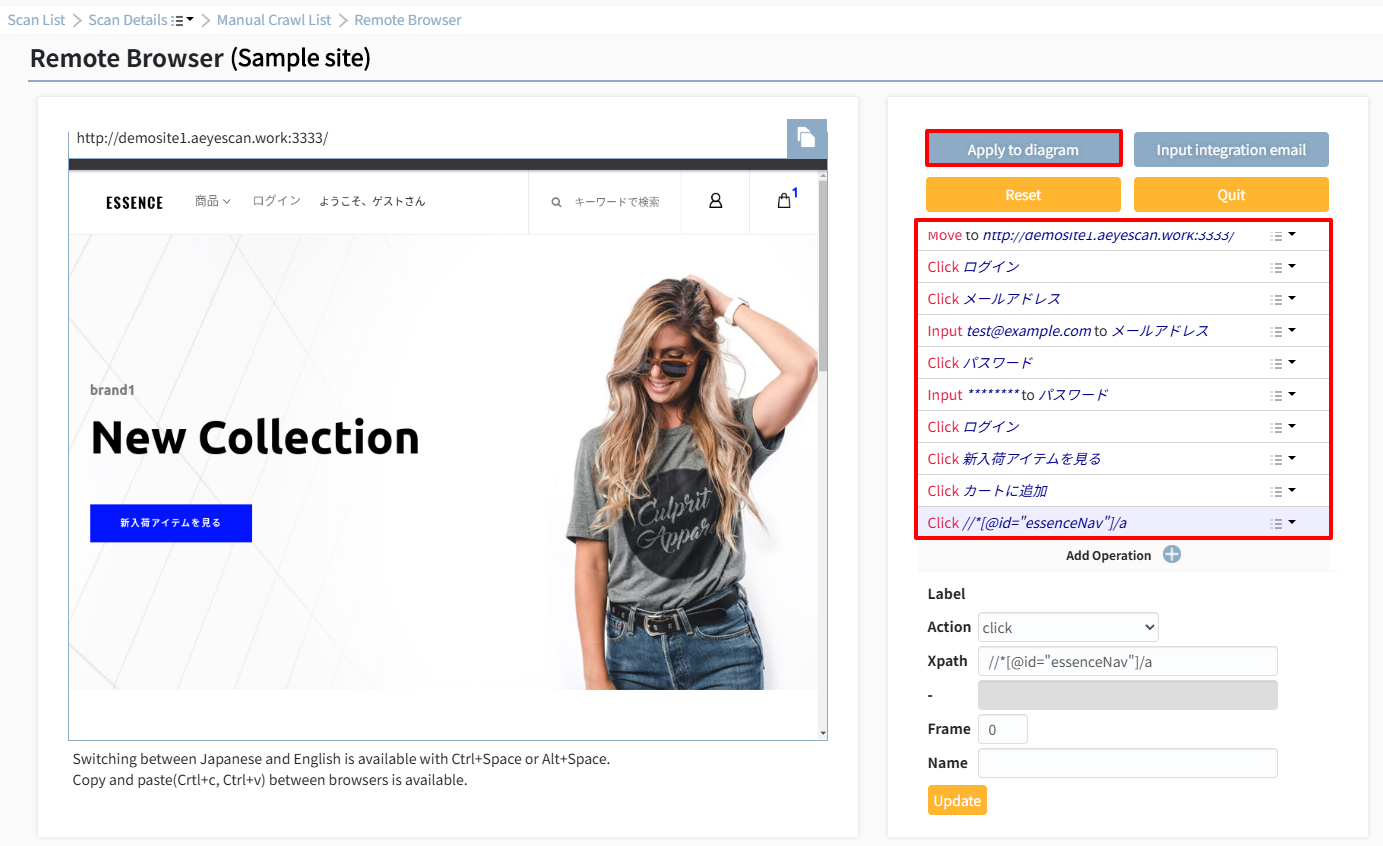

5. by operating the screen on the remote browser, the operation history will be saved on the right side of the screen.
When you have completed acquiring the function you wish to scan, click the "Apply to diagram" button.
*If many screens are recorded in a single manual crawl result, the time required for scanning will be longer.
Therefore, if multiple functions need to be scanned, it is recommended to reduce the number of screen transitions by recording the manual crawl result for each function.

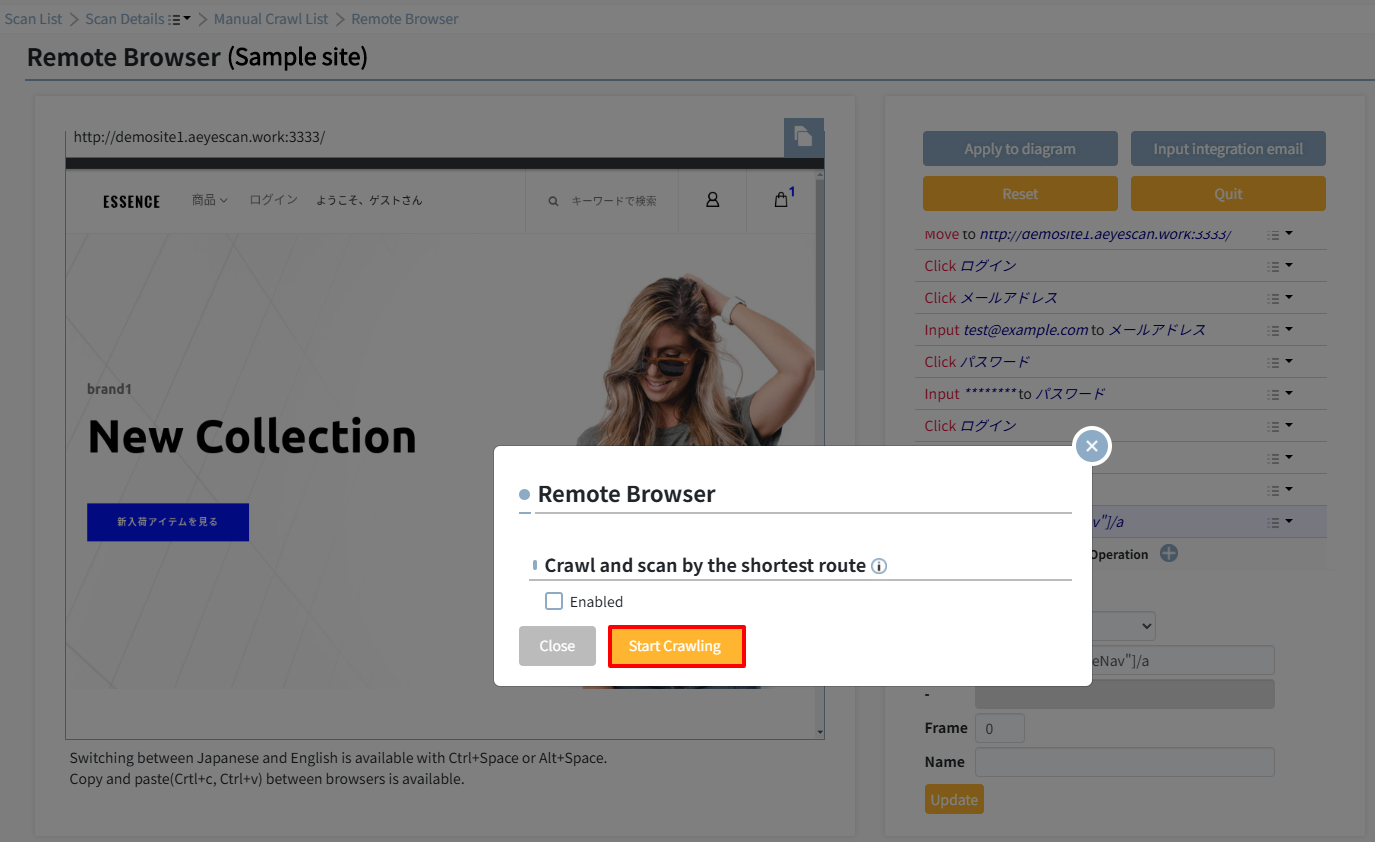

6. click on the "Start Crawling" button.

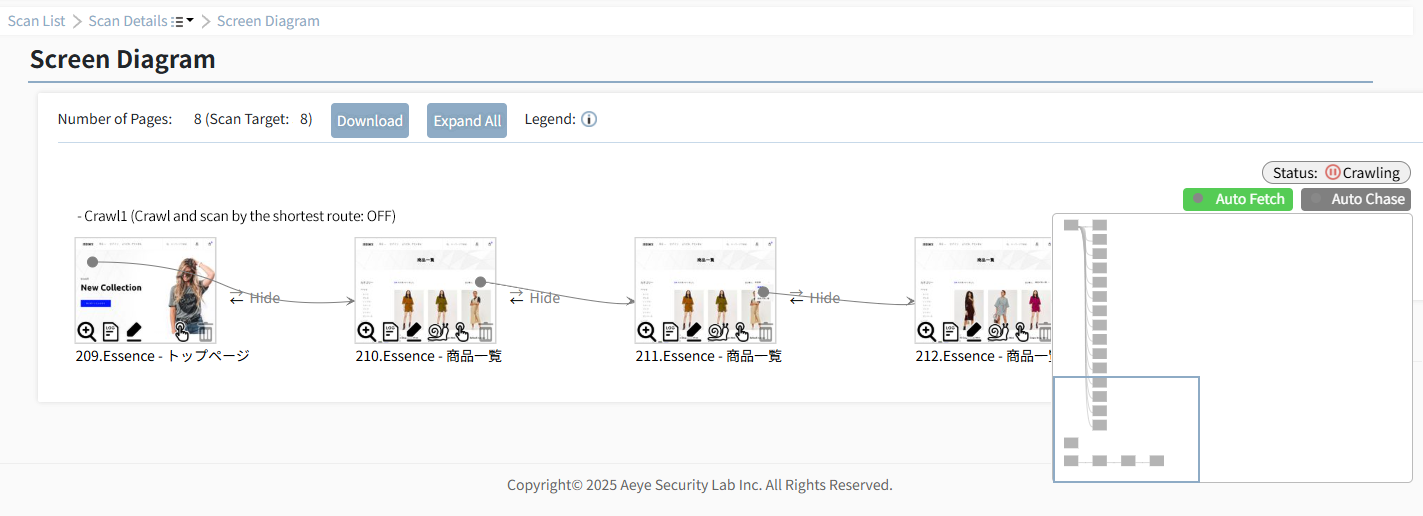

7. As a result, the crawl will be performed as you have operated it in the remote browser.
This is the end of the manual crawl using the Remote Browser function.
■Functions other than basic operations
In addition to the basic operations described above, the following functions are available, please refer to each article.
Combination of auto and manual crawl
