Please see below for a description of the setting items and each button on the operation screen of the Remote Browser Operation Edit function.
*For details on how to obtain XPath, please refer to the following article.
https://www.aeyescan.help/hc/en-us/articles/37802241275161
Events that can be selected in "Action"
The events that can be set in "Action" are as follows.

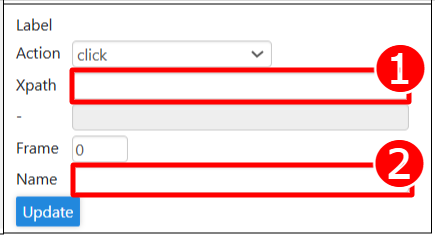

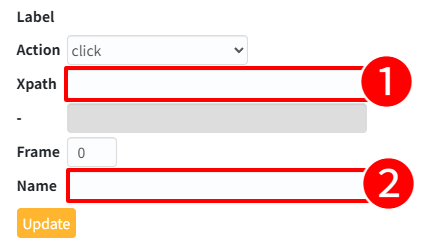

Action【click】
Xpath can be added manually, and click operations can be added and edited.
①Xpath: Set the Xpath of the button, etc. you wish to click.
②Name: An arbitrary operation name can be set for the operation record.

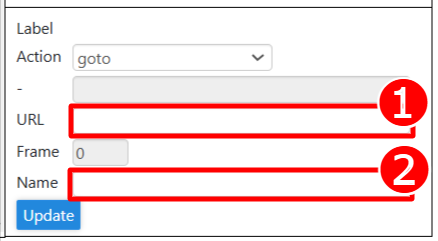

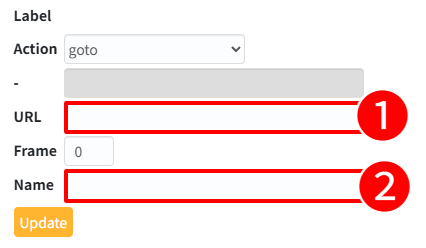

Action【goto】
Transition to an arbitrary URL can be added or edited.
①URL: Set an arbitrary URL to which you want to transition.
②Name: An arbitrary operation name can be set for the operation record.

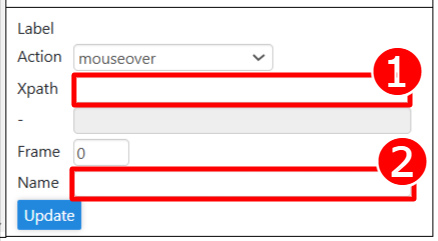

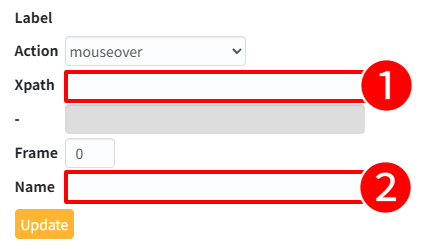

Action【mouseover】
Add or edit an operation that places the mouse cursor (pointer) over a button or other object.
①Xpath: Set the Xpath of the button, etc. to be operated.
②Name: An arbitrary operation name can be set for the operation record.

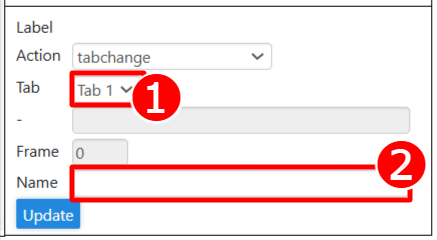

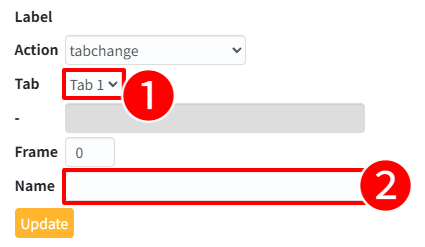

Action【tabchange】
Operation of switching tabs on the remote browser can be added or edited.
①Tab: Select a tab to be selected on the remote browser.
②Name: An arbitrary operation name can be set to the operation record.

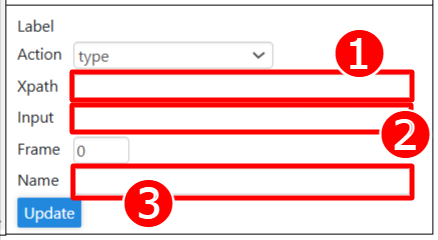

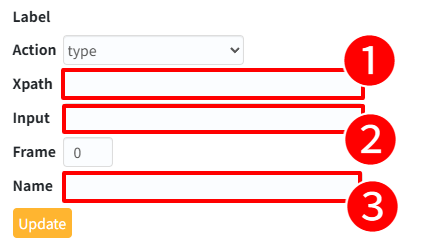

Action【type】
Input operation to the input form can be added or edited.
①Xpath: Please set the Xpath of the input form to be operated.
②Input: Set the value to be input to the input form.
③Name: You can set an arbitrary operation name for the operation record.

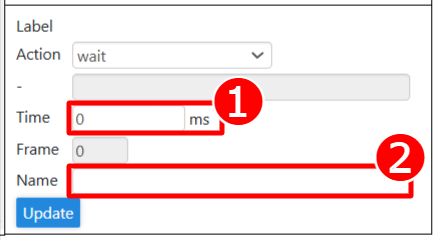

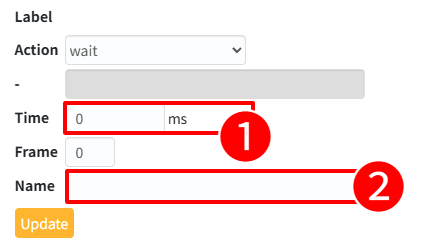

Action【wait】
Waiting time between operations (up to 60000ms) can be added.
①Time: Set an arbitrary waiting time in ms. (Max. 60000ms)
②Name: An arbitrary operation name can be set in the operation record.

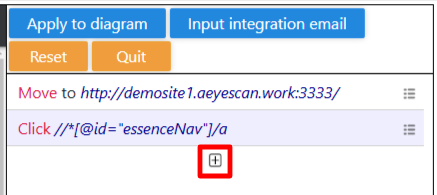

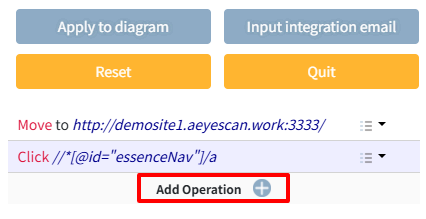

Add an operation
Click [+] to add an operation.

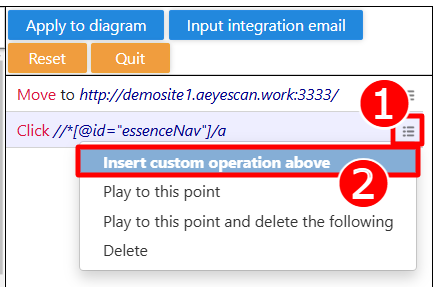

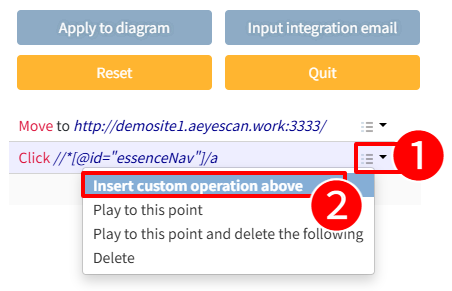

It is also possible to add an operation on top of a specific operation.

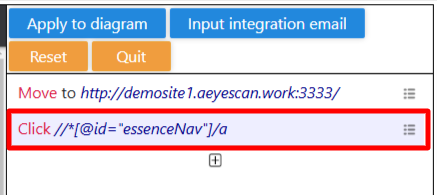

Changing an operation

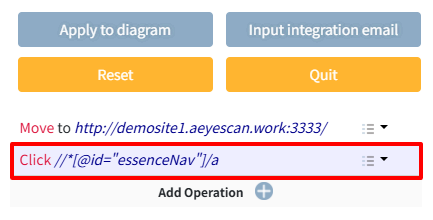

To change an operation, click Operation record to be changed.

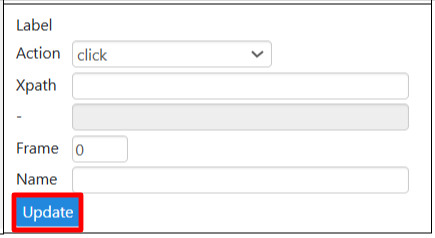

Click "Update" after setting the desired operation.

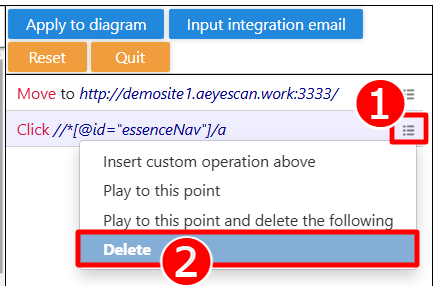

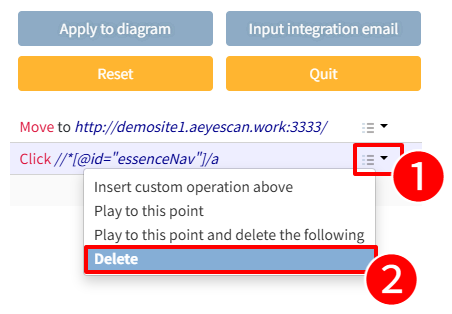

Deleting an operation
To delete an operation, click the "three-line menu①" of the operation record you wish to delete, and then click "Delete②".

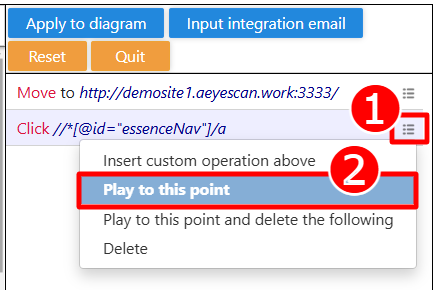

Playback of operation

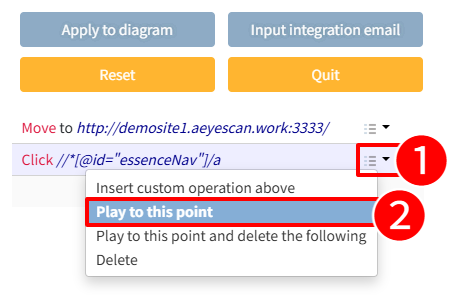

To replay an operation, click on the "three-line menu①" of the operation record you wish to replay, and then click on "Play to this point②".
The transition from the top to the selected operation record will be replayed.
This is the end of the explanation of the operation screen.
