Step6 Check crawl results and scan results

｜ Table of Contents

Check Crawl Results

Check the crawl results in the Screen Diagram.

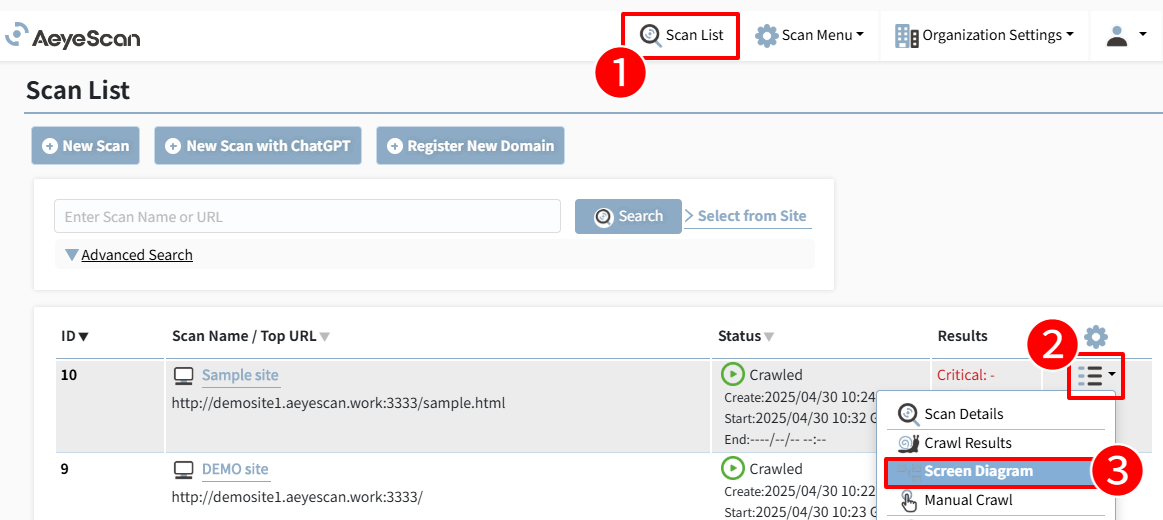

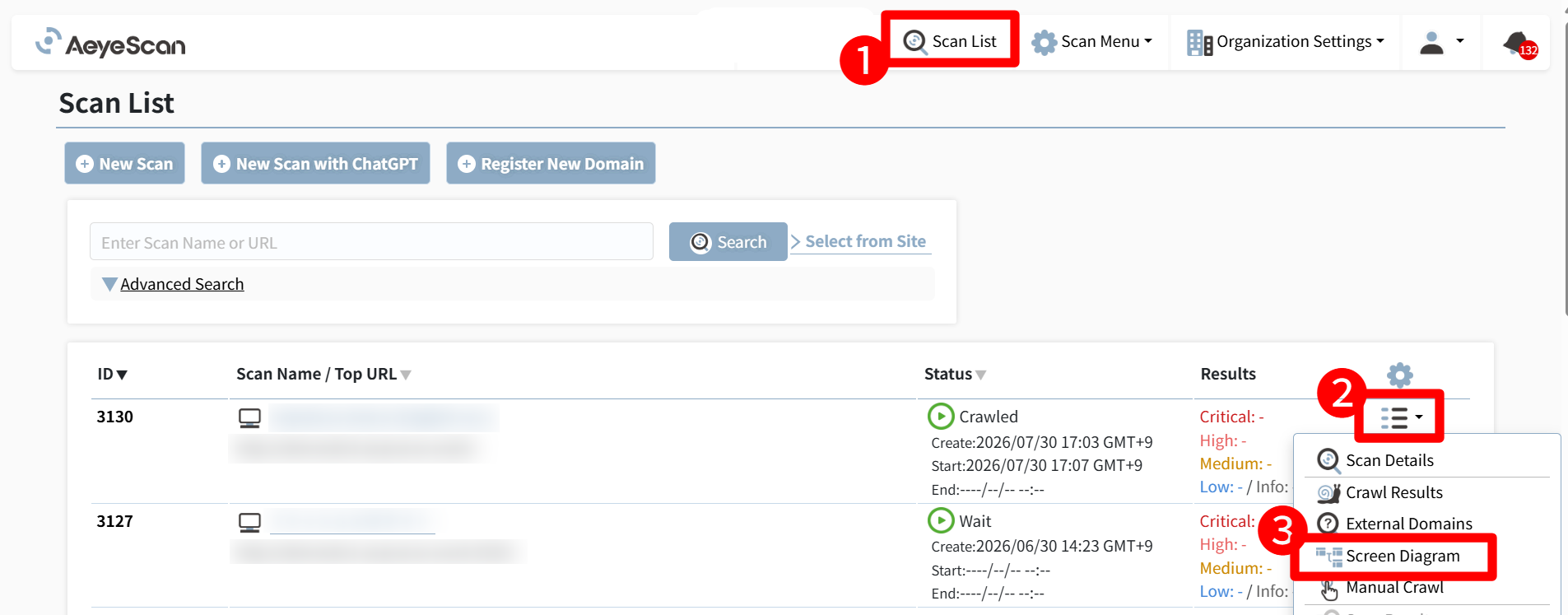

1. From the top page, click 1 "Scan List" - 2 the hamburger menu - 3 "Screen Diagram".

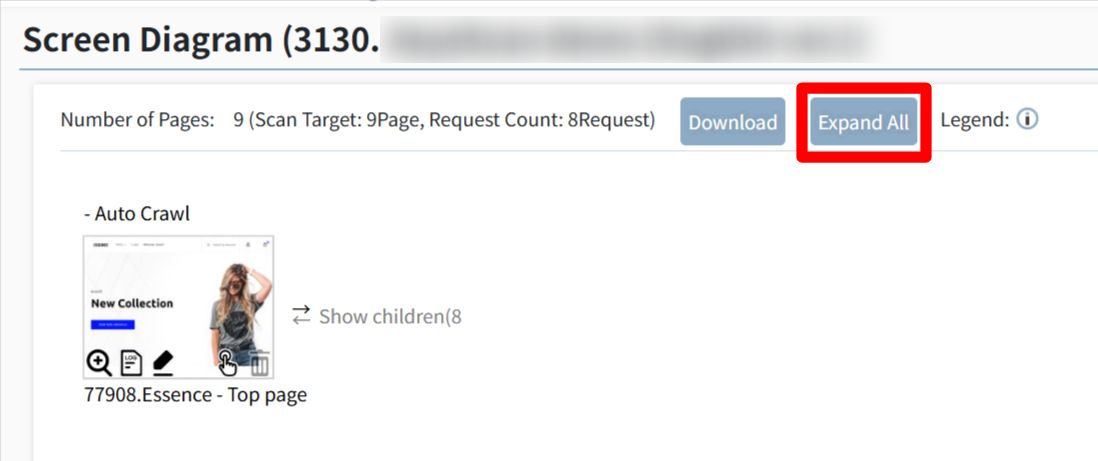

2. Click "Expand All".

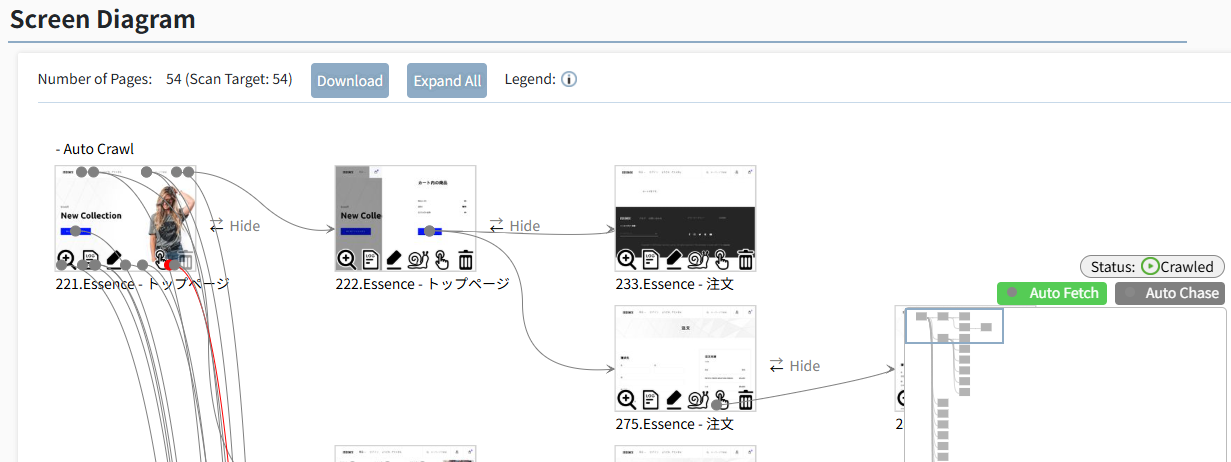

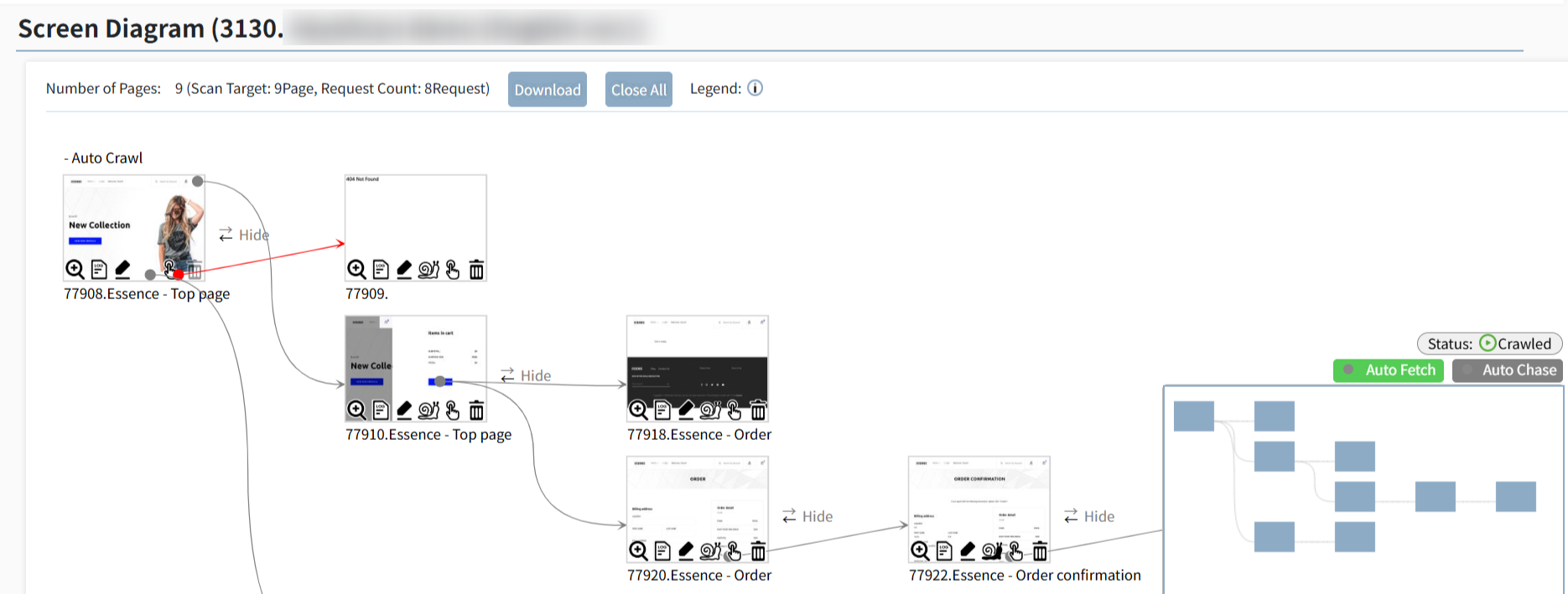

3. The entire Screen Diagram is now displayed. Check if the pages you want to diagnose have been crawled.


   MEMO You can also check the crawl results in CSV format. For details, please refer to the following article: https://www.aeyescan.help/hc/en-us/articles/37804927528985

Execute Scan

Once the crawl results are confirmed, execute the scan.

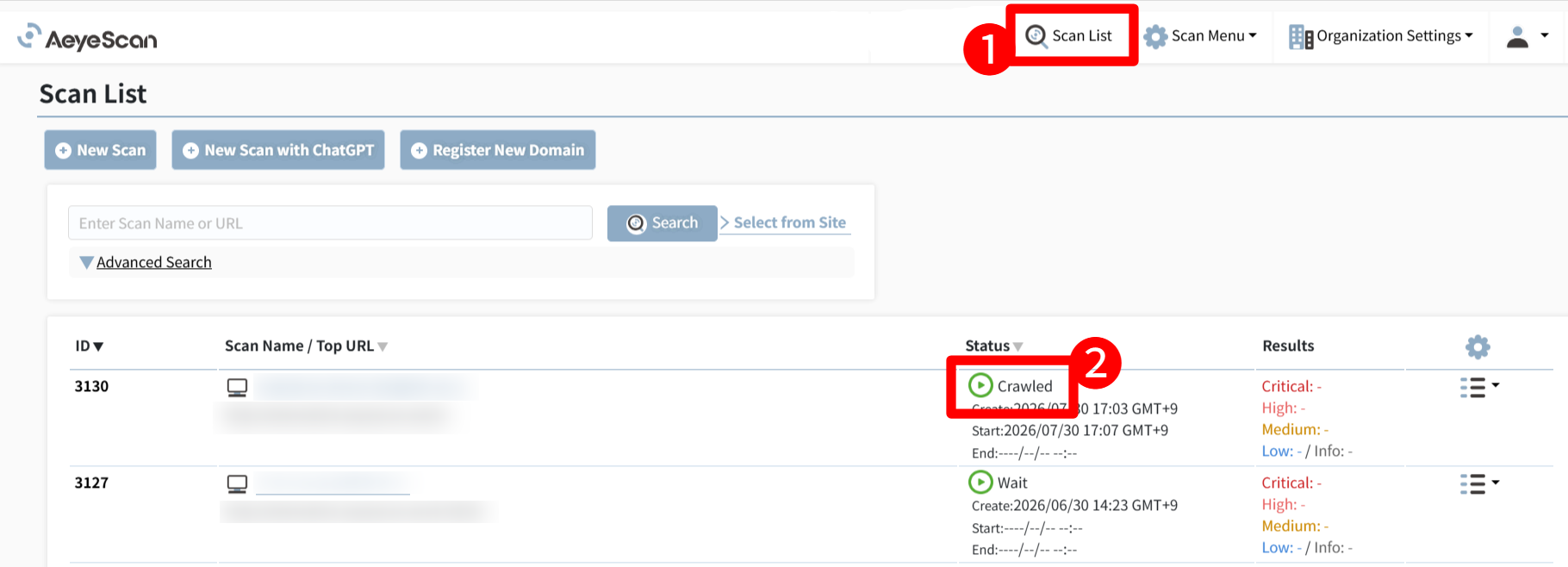

1. From 1 "Scan List" on the top page, click 2 "Crawled" in the status of the scan name you want to diagnose.

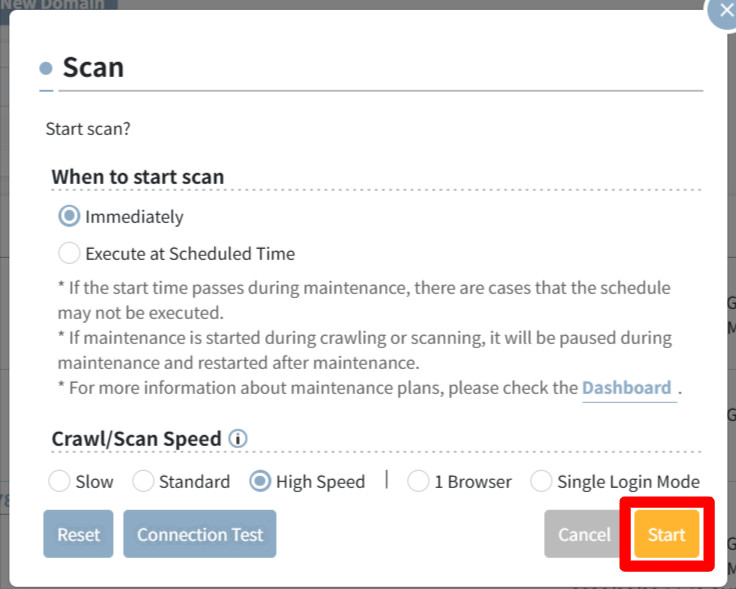

2. Click "Start".
   * You can start the scan crawl with "When to start crawl/scan" and "Crawl/Scan Speed" left at their default values.

   For details on each item, please refer to <Crawl/Scan> under "Supplementary Information" in "Step 5: Scan Registration and Crawl Execution".

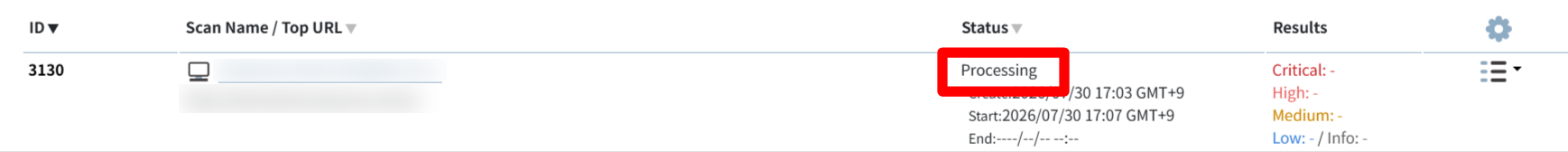

3. The scan has started, and the status is displayed as "Scanning" (or "Processing").

   * It will display "Scanning" during the scan, and "Finished" when the scan is complete.


Check Scan Results

Check the scan results.

* You can also view the scan results while the scan is in progress.

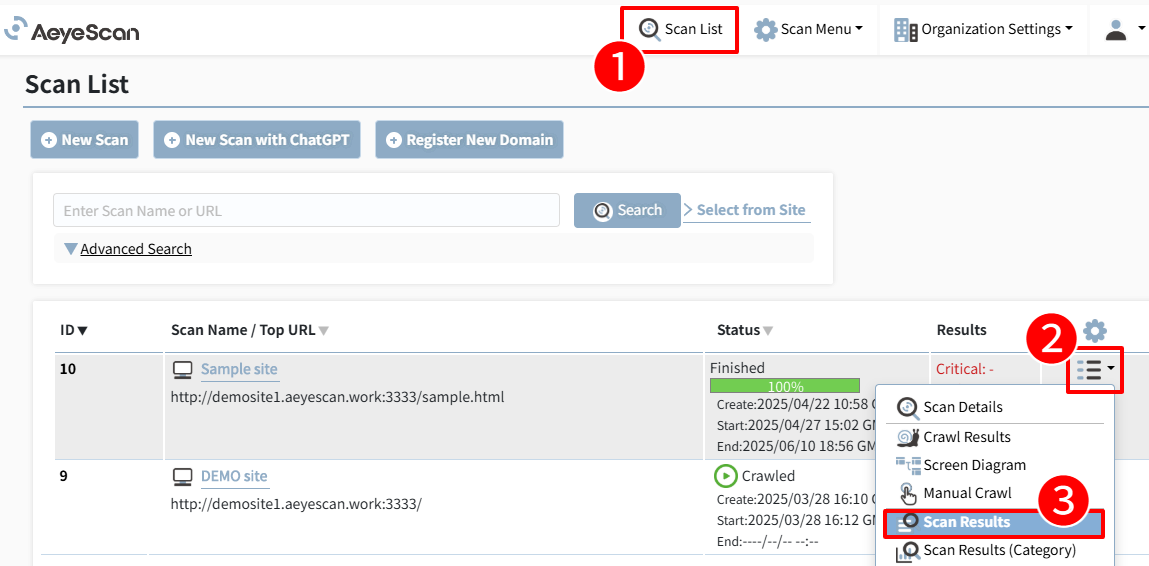

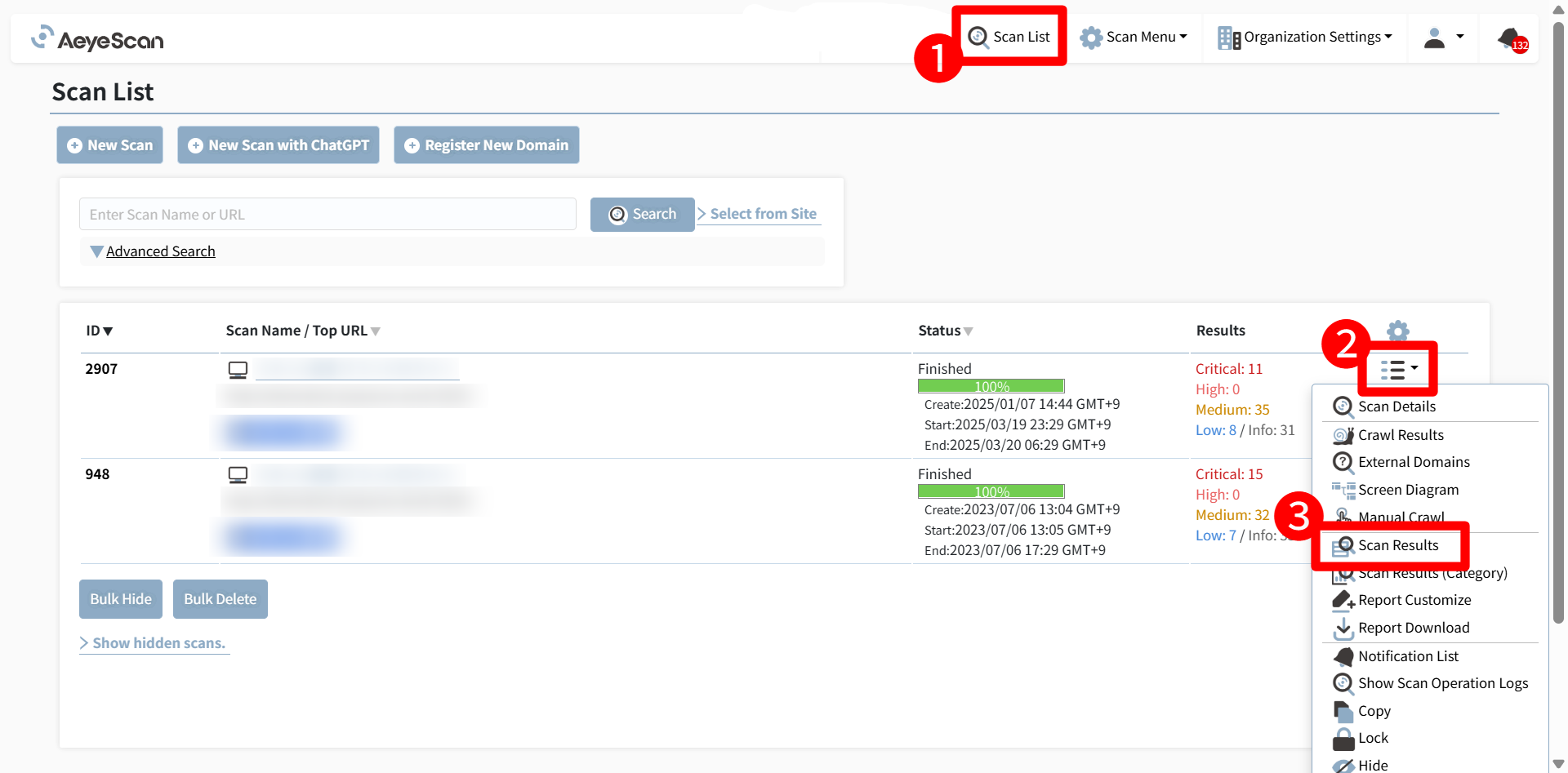

1. From the top page, click 1 "Scan List" - 2 hamburger menu - 3 "Scan Results".

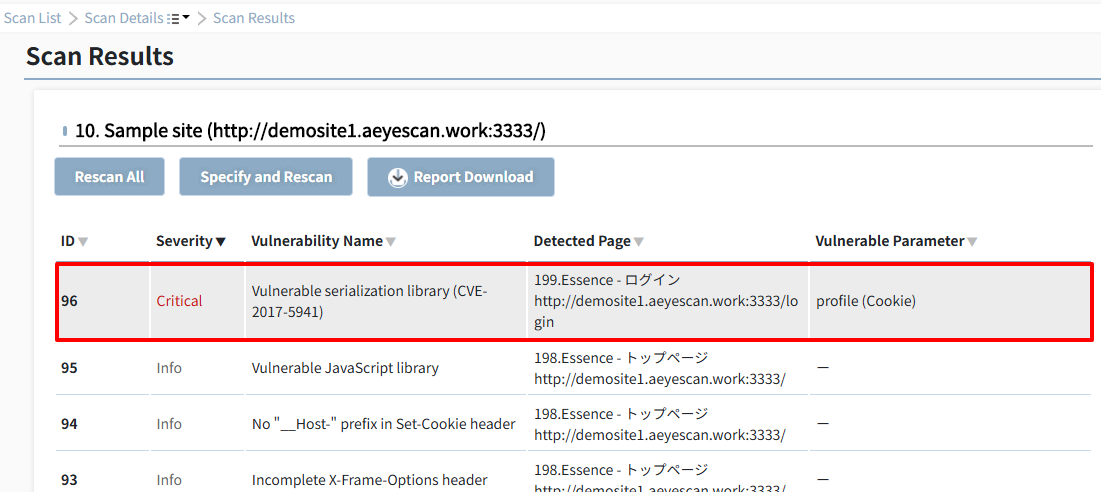

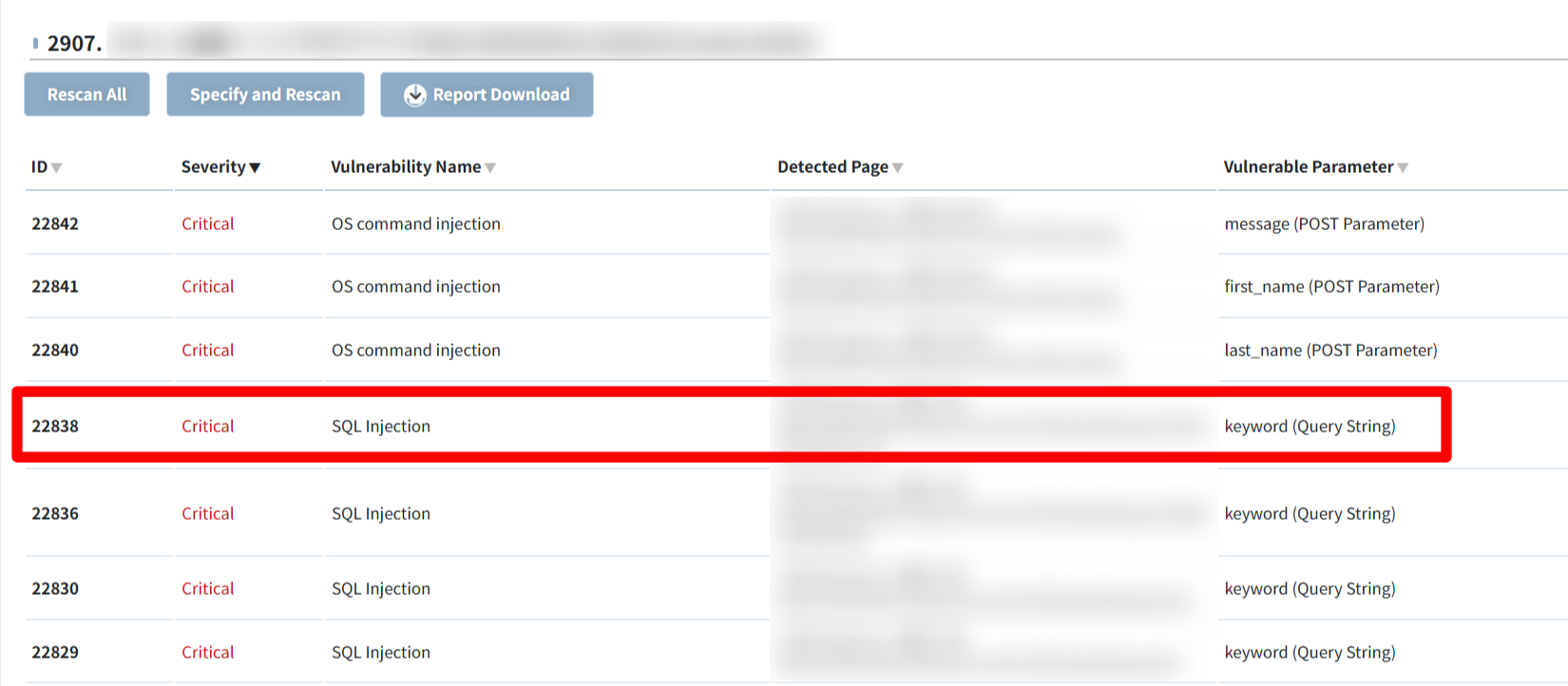

2. Click the "Vulnerability Name" for which you want to check the details.

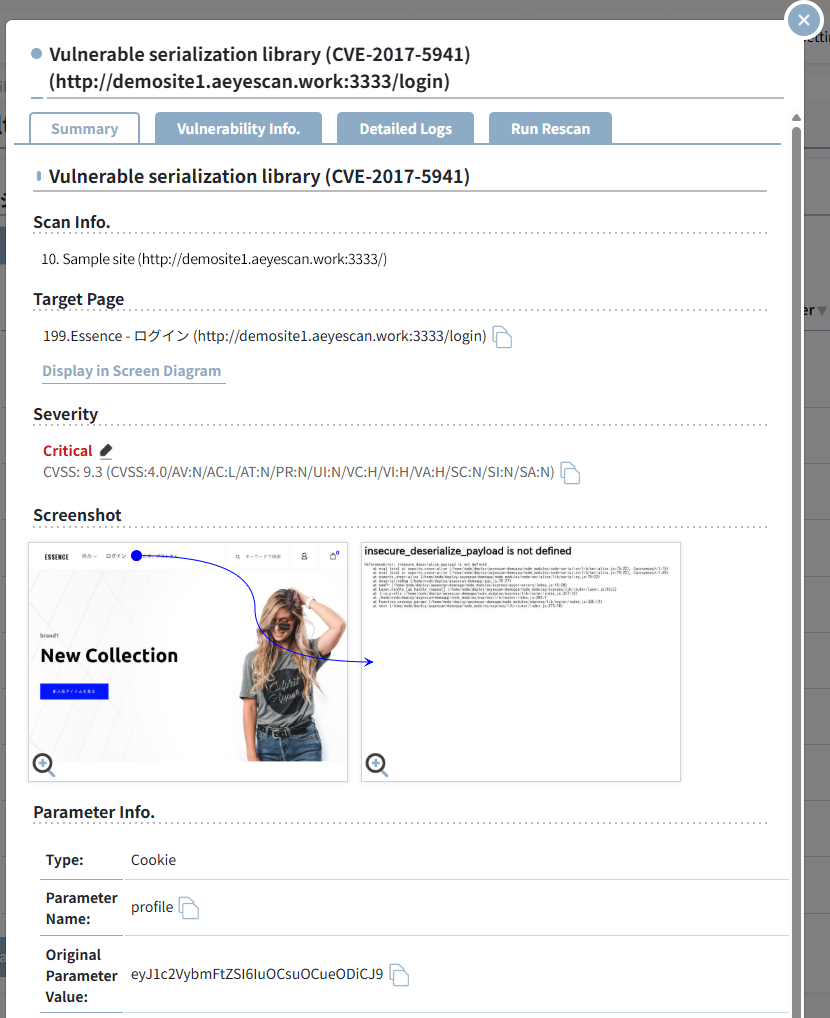

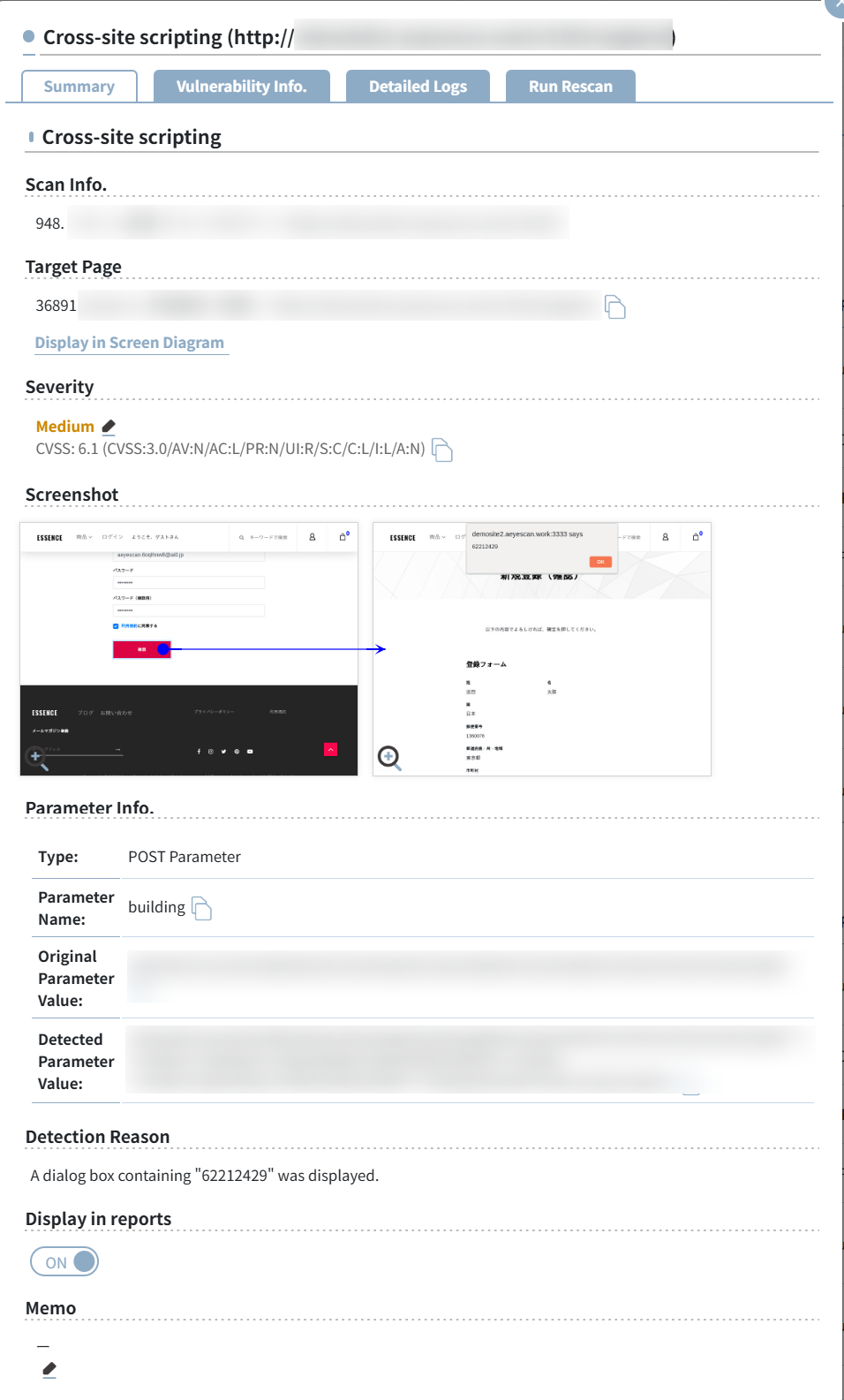

3. Check the summary of the vulnerability, detailed logs, etc.

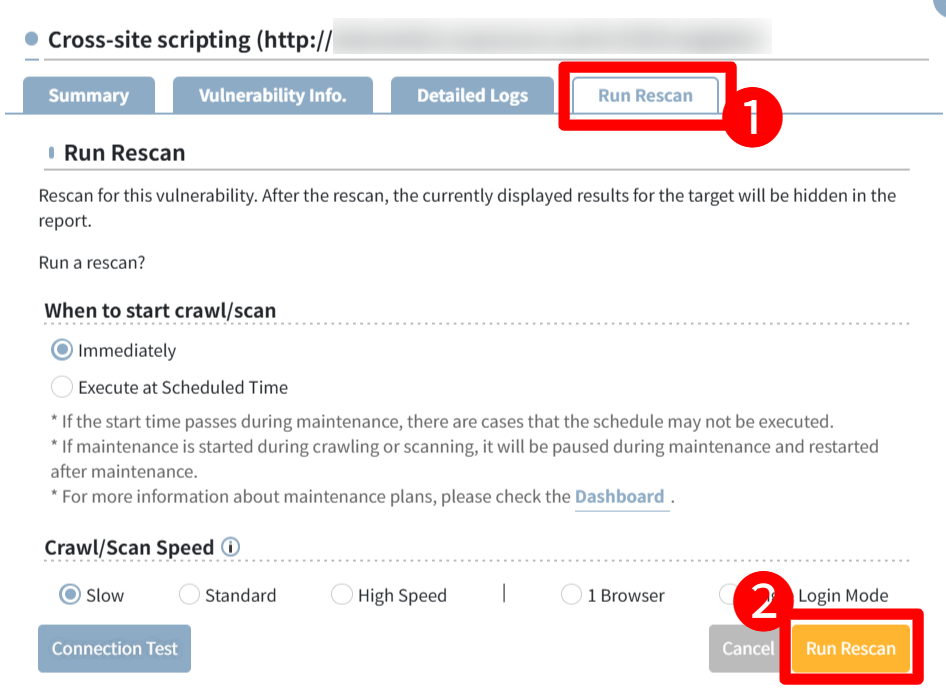

4. After dealing with the detected vulnerability, you can execute a rescan to access the site again and confirm whether it is reproduced.
